Sharp Electronics is a prominent Button Type Load Cell Manufacturers in India and Button Type Load Cell Suppliers in India. As certified by ISO 9001:2015, we have been renowned to deal in the provision of high performing; precision engineered Button Type Load Cells to India and a wide variety of industrial and scientific needs. Variety of the force measurement solutions makes our products accurate and reliable, which are recognized as the key solution in weighing and measurement industry.
As committed Button Type Load Cell Dealers in India, Button Type Load Cell Traders in India, and Button Type Load Cell Distributors in India, we give us an end-to-end assistance, the post-sale support continues up to the proper selection of our products. As a Button Type Load Cell Exporter in India, we can supply the standard button type load cells as well as custom designed solutions.
Understanding Button Type Load Cells

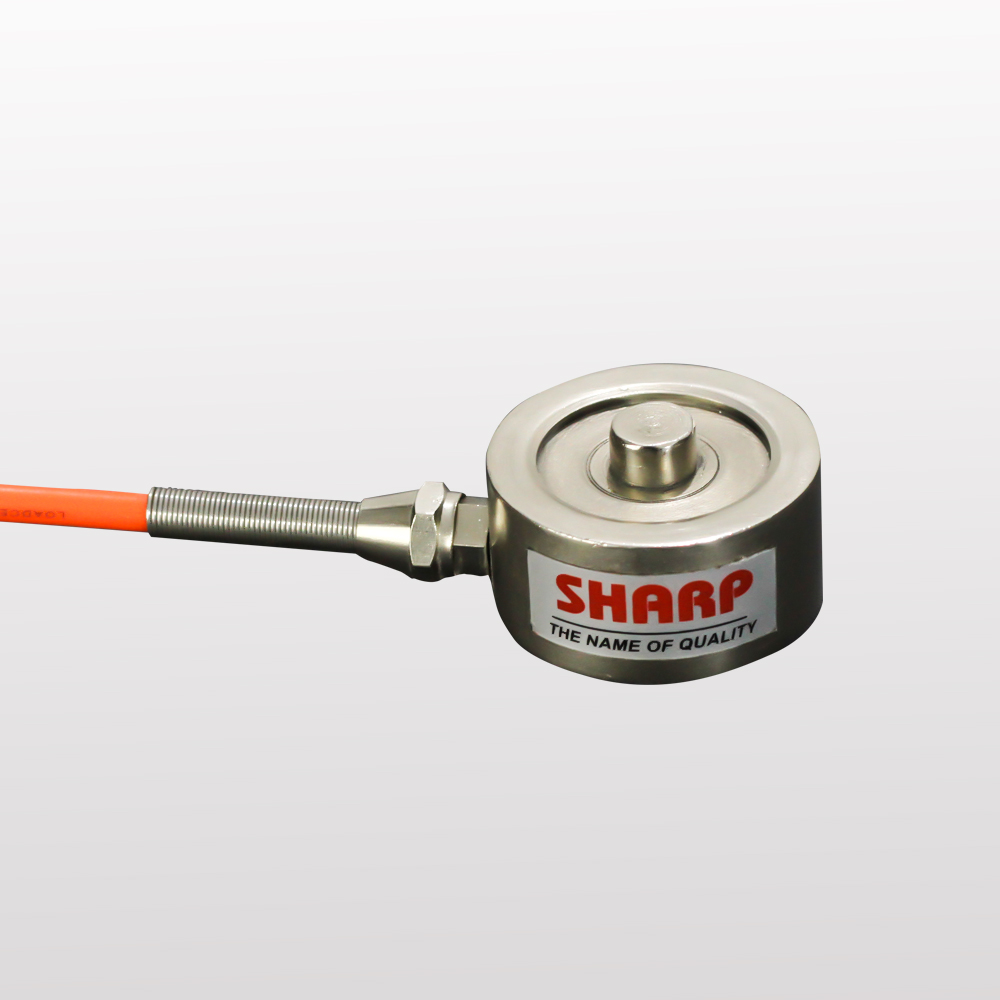

Button-type load cells are low-profile transducers used to measure compression forces in tight spaces. They are suited for applications where space is not available, e.g., robotics, medical equipment, and industrial control. They come with a strain gauge-based structure, which translates mechanical force into an electrical output that can be measured.
We utilize our proficiency as Button Type Load Cell Manufacturers in India to manufacture load cells in accordance with high-quality specifications to deliver consistent performance in a wide range of industries.
Working Process of Button-Type Load Cells
Button-type load cells are small compression load cells used for force measurement in cramped or space-limited situations. Identified by their cylindrical "button" shape and small size, these load cells are extensively employed in industrial, medical, and testing fields where there is a need for accurate compression force measurement.
Button-type load cells work on the principle of strain gauge technology, where mechanical force is translated to an electrical signal.
Step-by-Step Working Principle:
- Force Application: On application of a compressive force on the top of the button-shaped surface, the internal structure of the load cell is slightly deformed in proportion to the applied force.
- Strain Gauge Response: Strain gauges, accurately bonded to the strategic points of the internal structure, deform with the load cell. This deformation results in stretching or compressing of the gauges.
- Change in Resistance: The strain gauges undergo a change of electrical resistance due to its deformity; namely, they increase in electrical resistance in a state of stretching, and reduce in a state of compression.
- Wheatstone bridge Diagram: This set of gauges is connected in a Wheatstone bridge set up which is very sensitive in detecting the smallest variation in resistance.
- Signals are produced: The change in resistance also unbalances the bridge circuit, which produces a small electrical signal (voltage or current), which directly scales to the applied compressive force.
- Signal Amplification: Then this signal is amplified and filtered through a signal conditioning system to remove noise and compensate against environmental effects, such as changes in temperature.
- Calibration: Calibration of the load cell uses known measured loads to measure their electrical output and induce a linear relationship between force and output signal.
- Measurement and Output: The ultimate conditioned signal is shown on a digital readout or utilized as an input for control systems, providing accurate, real-time force or weight measurement.
Technical Specifications
| Specification | Details |
|---|---|
| Type | Button Type Load Cell |
| Applications | Compression Force Measurement |
| Capacity Range | 1 kg to 50 kg (standard), custom options available |
| Accuracy | Up to 0.03% of full scale |
| Output | 2 mV/V to 3 mV/V |
| Excitation | 5V to 15V |
| Temperature Range | -10°C to +40°C (standard) |
| Material | Stainless Steel |
| Protection | IP67 |
Features of Button Type Load Cells
Our button type load cells are designed with cutting-edge technology features to provide better performance. As Button Type Load Cell Suppliers in India, we emphasize the following features:
- High Accuracy: Precision-engineered for high accuracy, with measurements up to 0.03% / +0.001% full scale accuracy.
- Compact Design: Low profile and small footprint allow for easy incorporation into space or size-limited systems without degrading performance.
- Reliability: Constructed from high-quality stainless steel, our load cells endure tough conditions, vibration, and extended use.
- Flexibility: Suitable for a wide variety of applications, from light-duty to heavy-duty compression force measurement.
- Low Profile: Their low profile makes these mini-sensors excellent for use where vertical space is a design constraint, such as in the medical and robotics sectors.
- Simple Installation: Simple mounting solutions support easy and swift installation, minimizing downtime.
Uses of Button Type Load Cells
Being Button Type Load Cell Exporters in India, we provide these products to markets worldwide, with applications including:
- Medical Equipment: Employed in surgical tools, prosthetics, and rehabilitative equipment for accurate force measurement to secure patient safety and accuracy.
- Robotics: Helps to provide pressure response on robot grippers and robotic arms, and allows valid positional control of an automated machine.
- Industrial Automation: Monitors and controls the forces in manufacturing processes, packaging, and assembly lines to be more efficient.
- Aerospace: Helps in testing and quality assurance during the production of aircraft parts, where high precision is required with low space.
- Automotive: Tests forces in seat belts, airbag systems, and other vehicle testing applications.
- Research and Development: Offers accurate force measurement in laboratory environments for scientific research and material testing.
Why Choose Sharp Electronics?
Sharp Electronics is a high-quality Button Type Load Cell Manufacturers in India and Button Type Load Cell Suppliers in India. Our button type load cells are manufactured to suit the varied requirements of industries, ranging from medical devices to industrial automation. We provide hassle-free access to our products within the country. Our strong supply base and export capacity position us as a world leader in load cell technology, offering customized solutions that are compliant to global standards.
Being Button Type Load Cell Traders, Distributors, and Dealers in India, we focus on delivering the best-in-class solutions specific to your requirements. We are your ideal business partner for accurate force measurement solutions. From medical, robotic, to industrial applications, our button type load cells are designed to provide superior accuracy and sustainability. Reach out to us today to discover our offerings and take your force measurement systems to the next level.
